- Two Unitree Dex3-1 hands Three-finger force-control hands with 7 DOF each (thumb 3, index 2, middle 2) replace the R1's fixed hands.
- 40 degrees of freedom The 26 body joints and 14 hand joints give the Pro A 40 DOF in all.
- Direct-drive fingers Each Dex3-1 moves on 6 direct-drive and 1 gear-drive micro brushless joints.
- 100 TOPS Jetson Orin backpack An NVIDIA Jetson Orin module rated at 100 TOPS is the development computer for unitree_sdk2, DDS and ROS 2.
- Hands wired through the backpack Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module.
- Hands without touch sensors The Pro A's Dex3-1 hands come without touch sensors; the Pro B uses the same hands with 33 pressure sensors each.
- 12-month manufacturer warranty Every R1 EDU carries Unitree's 12-month warranty.
Description

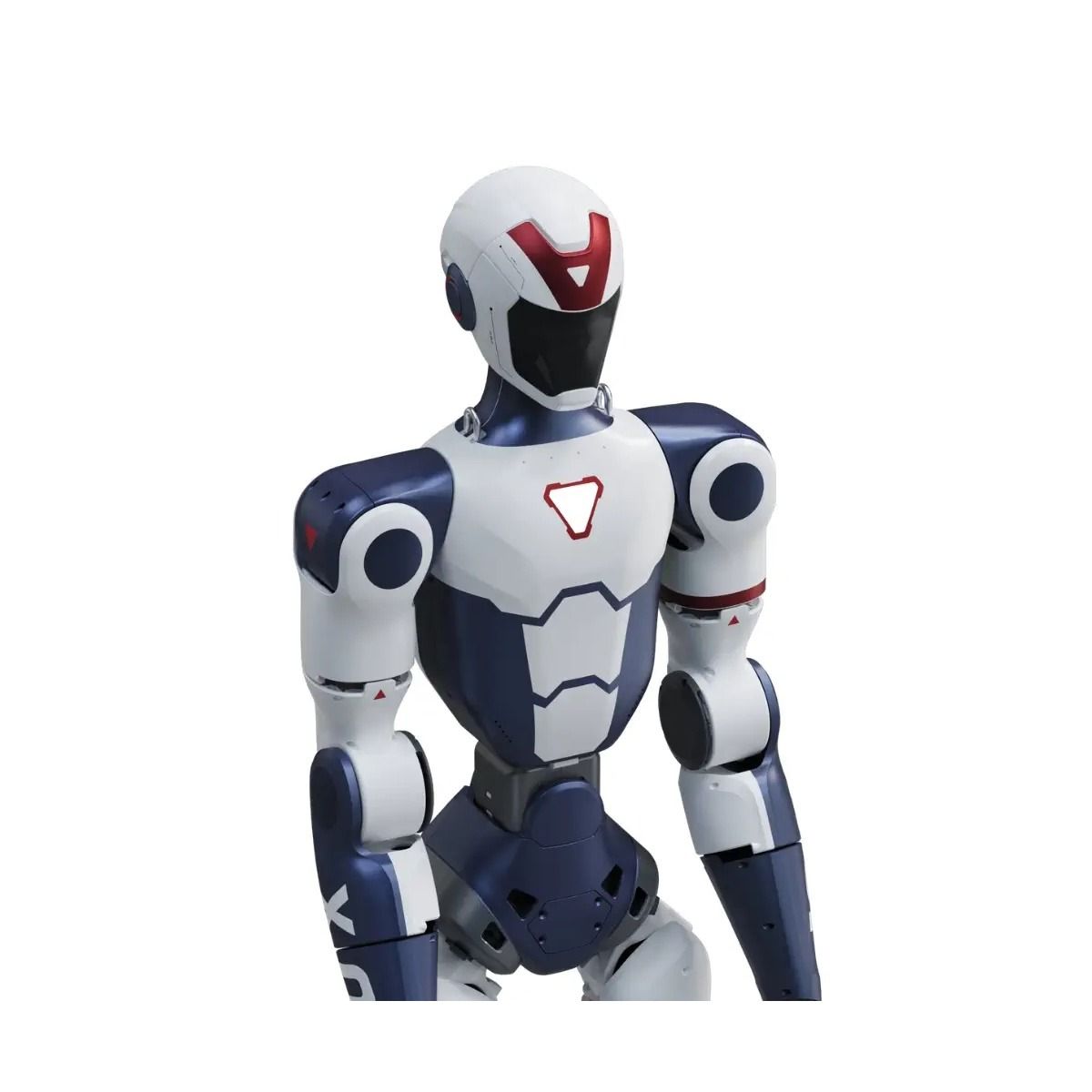

The Unitree R1 EDU Pro A (U3) is the R1 EDU supplied with two Unitree Dex3-1 three-finger dexterous hands in place of the fixed hands. Each hand has 7 degrees of freedom (thumb 3, index 2, middle 2), so the robot has 40 in all, on an NVIDIA Jetson Orin backpack rated at 100 TOPS with full secondary development.
The Dex3-1 is Unitree's force-control hand, driven by 6 direct-drive and 1 gear-drive micro brushless joints. Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module, and Unitree publishes a step-by-step fitting film for it. The Pro A's hands come without touch sensors.
The rest is the R1 EDU: the 26-joint, 29 kg body with its binocular depth camera, unitree_sdk2 in C++ and Python on DDS, compatibility with ROS 2, and URDF, STEP and MuJoCo models. It is the three-finger route into dexterous manipulation on a walking humanoid for research groups and teaching labs.

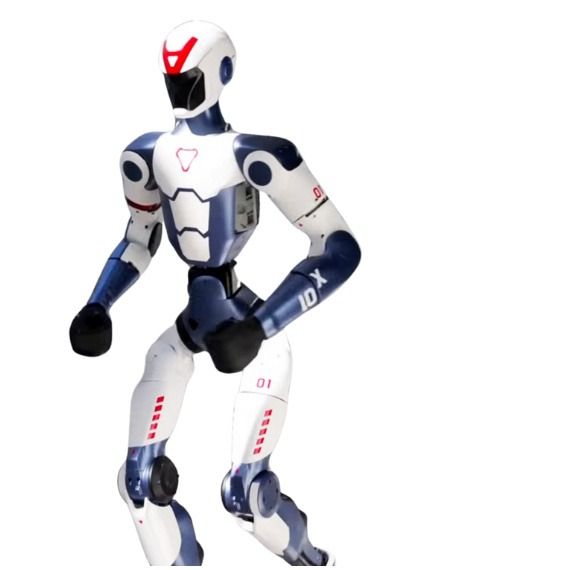

The R1 EDU Pro B (U4) uses the same Dex3-1 hands with 33 pressure sensors each. Pro C and Pro D carry five-finger BrainCo Revo 2 hands (38 DOF in all), and the R1 EDU Smart (U2) is the same 100 TOPS robot without hands.
Key Capabilities
- Hands: Two Unitree Dex3-1 three-finger hands, 7 DOF each, without touch sensors.
- Degrees of freedom: 40 in all: 26 body joints + 14 hand joints.
- Hand drive: Force control through 6 direct-drive + 1 gear-drive micro brushless joints per hand.
- Computing backpack: NVIDIA Jetson Orin, 100 TOPS, with the dexterous-hand expansion module.
- Secondary development: unitree_sdk2 (C++, Python), DDS, ROS 2; URDF, STEP and MuJoCo models.
- Body: 1.23 m, 29 kg, binocular depth camera, 6000 mAh battery; 12-month warranty.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | R1 EDU Pro A (U3); Unitree name: R1 EDU |
| Robot type | Bipedal humanoid robot |
| Size, standing | 1230 × 357 × 190 mm (height × width × thickness) |
| Size, folded | 690 × 450 × 300 mm |
| Weight | About 29 kg with battery |
| Colours | White or red; creative stickers to change the look |
| Body joints | 26 joint motors: 6 per leg, 5 per arm, 2 in the waist, 2 in the head |
| Total degrees of freedom | 40 (26 body joints + 14 active hand joints) |
| Leg and arm length | Calf + thigh 600 mm; forearm + upper arm 420 mm |
| Range of motion | Knee −10° to +139°; hip yaw ±157°, pitch −168° to +146°, roll −60° to +100°; waist yaw ±150°, roll ±30°; head yaw ±115°, pitch ±36° |
| Arm payload | About 2 kg per arm, varies greatly with arm posture |
| Drive | Low-inertia, high-speed inner-rotor PMSM joint motors; crossed roller and ball bearings; dual + single encoders; hollow internal wiring; local air cooling |
| Dexterous hands | 2 × Unitree Dex3-1 |
| Hand type | Three-finger, 7 DOF per hand |
| Hand drive | Force control: 6 direct-drive + 1 gear-drive micro brushless joints per hand |
| Touch sensing | Not included (the Pro B's Dex3-1 hands carry 33 pressure sensors each) |
| Hand size and weight | Confirm at quote; Unitree's figures for the Dex3-1 with sensors: 175 × 88 × 77 mm, 710 g, ±2 mm fingertip repeatability, 500 g grasp load |
| Hand connections | Each hand connects to XT30 power, a signal port and a camera port on the backpack's dexterous-hand expansion module |
| Camera | Binocular depth camera in the head, 146° × 124° field of view; RGB 1280 × 720 at 30 Hz, depth 544 × 448 at 10 Hz |
| Computing | 8-core high-performance CPU + 10 TOPS visual computing module |
| Computing backpack | NVIDIA Jetson Orin, 100 TOPS (development computing unit) |
| Audio | 4-microphone array; stereo speakers, 3 W × 2 |
| Voice and image AI | Voice and image interaction through a large multimodal model when online; wake phrase "Hello Robot" or press-to-talk |
| Status light | 256-colour RGB chest light showing the robot's state |
| Wireless | Wi-Fi 6, Bluetooth 5.2 |
| Top panel | XT30 power outputs 24 V / 3 A and 36 V / 5 A; RJ45 gigabit Ethernet; stand-up / lie-down button |
| Battery | Quick-release smart battery, 6000 mAh |
| Run time | About 1 h per battery (less with fast walking, load or uneven ground) |
| Charger | 100–240 V input; 38 V, 3 A, 114 W output; about 1.5 h per charge, battery charged outside the robot |
| Remote control | Hard emergency-stop button and soft stop (L2 + B); 780 mAh, about 5 h; more than 100 m in an open environment |
| Control and updates | Unitree Explore app (iOS, Android), remote control and voice; smart OTA upgrades |
| Built-in actions | Running mode (low or high speed); dance modes including Kung Fu, Jeet Kune Do and Twist; gestures such as handshake, wave and clap |
| Secondary development | unitree_sdk2 in C++ and Python on DDS; compatible with ROS 2 (Foxy, Humble); high-level and joint-level control |
| Simulation models | URDF, STEP and MuJoCo models of the R1 |
| Navigation | Optional LiDAR for Unitree's SLAM and navigation service (static, flat indoor spaces under 45 m) |
| Operating environment | 0–40 °C on flat ground; not waterproof, not dustproof |
| Warranty | 12 months |
| In the box | The robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual; as an R1 EDU, the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads; two Unitree Dex3-1 hands with fixing brackets, camera brackets and cables. Full packing list confirmed with your quotation |
Industries
Product Brochure
Unitree Robotics R1 EDU Pro A (U3) – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The Unitree Robotics R1 EDU Pro A (U3) is priced at £23,750 in your market. For volume or project orders, contact us for a business quote.
Touch sensing. Both carry two Unitree Dex3-1 three-finger hands (7 DOF each, 40 DOF in all) on the 100 TOPS backpack. The Pro A's hands have no touch sensors; the R1 EDU Pro B (U4) has 33 pressure sensors per hand in 9 arrays, measuring 10–2500 g.
Each Dex3-1 is a three-finger force-control hand with 7 DOF: 3 in the thumb, 2 in the index finger and 2 in the middle finger, on 6 direct-drive and 1 gear-drive micro brushless joints. Unitree's figures for the version with sensors are 710 g, 175 × 88 × 77 mm, ±2 mm fingertip repeatability and a 500 g grasp load; the Pro A hand's own figures are confirmed with your quotation.
Unitree's R1 unboxing film shows the robot in a hard transport case, a quick-release R1 smart battery, the charger and charging cable, a remote control with emergency stop, a stand set (base, support rod, bracket, quick-release clamp, wave washer and protective foam), a calibration steel shaft, body stickers and the user manual. As an R1 EDU it adds the computing backpack with its NVIDIA Jetson Orin module (100 TOPS), expansion rails, screws, the dexterous-hand expansion module and its leads. The Pro A (U3) also comes with its two Unitree Dex3-1 hands, their fixing brackets, camera brackets and cables. Unitree publishes no written packing list per edition, so we confirm the full list for your configuration with your quotation.
Unitree does not recommend it. During development, avoid violent movements such as running or balance tests while the dexterous hands are fitted, and increase the shoulder motors' outward offset so the hands do not collide with the body.
Yes, as every R1 EDU does: unitree_sdk2 in C++ and Python on DDS, compatible with ROS 2, with high-level and joint-level control, on the backpack's 100 TOPS development computing unit. Unitree provides URDF, STEP and MuJoCo models of the R1.
Like every R1 EDU, the R1 EDU Pro A (U3) carries Unitree's 12-month manufacturer warranty (the R1 Basic: 8 months). It is sourced new through established distribution channels and ships worldwide, and technical support is coordinated with the manufacturer's service network. Unitree's R1 developer guide covers the SDK, the computing backpack and fitting the hands.
