- RTK + visual AI navigation Satellite positioning and visual AI together locate the mower on the lawn.
- Planned S-shaped rows Path planning lays out S-shaped rows across the entire area for even coverage.
- Rated for 1,200 m² The N3 covers four times the 300 m² rating of the economy TYM L3.
- Floating cut on 22° slopes The deck follows uneven ground, and the mower is rated for gradients up to 22° (40%).
- 100 minutes per charge The built-in 5,200 mAh battery recharges in 180 minutes.
- IPX5 with app control The body is rated IPX5, and mowing is scheduled and adjusted in the smartphone app.
Description

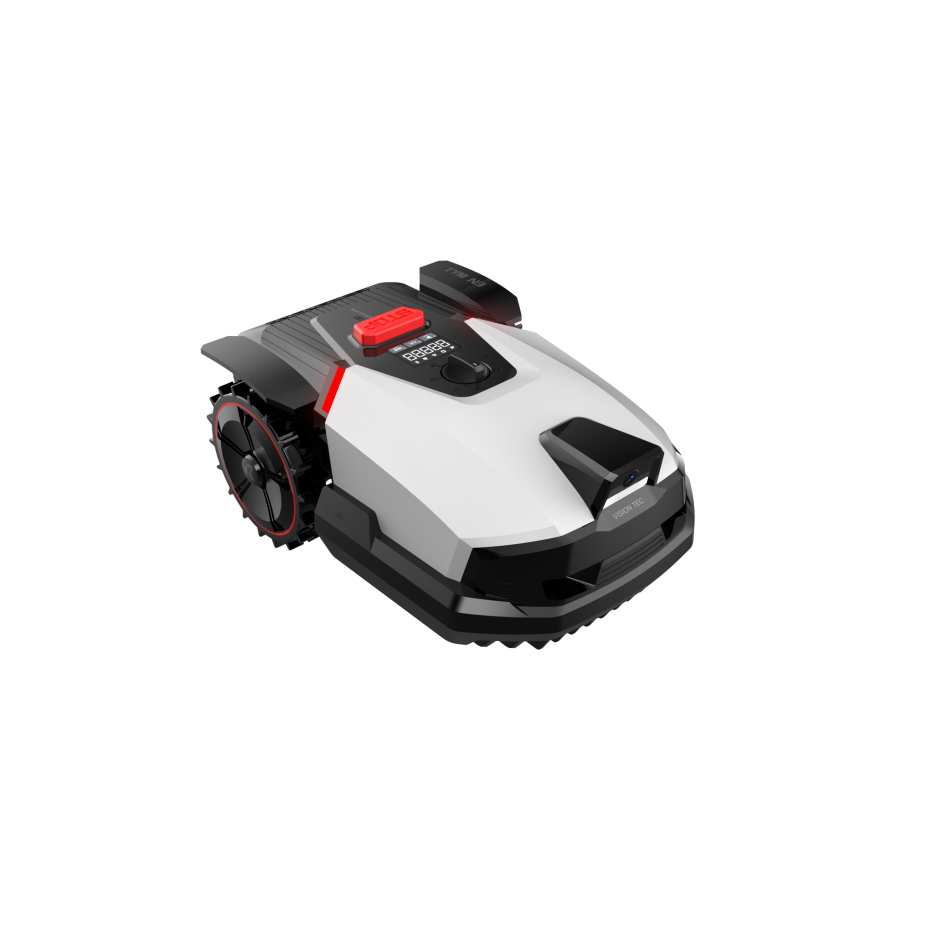

The TOUA TYM N3 is the route-planning model in TOUA's robotic mower range. It locates itself with RTK satellite positioning combined with visual AI and works the lawn in planned S-shaped rows across the whole area. That is the point of difference from the economy TYM L3, which keeps to a boundary wire, steers off obstacles by contact and is rated for 300 m²; the N3 is rated for lawns up to 1,200 m².
The cutting deck floats with the ground for an even cut, and the N3 is rated for slopes up to 22° (40%), with rough terrain and potholes among the conditions the floating cut is built for. The cut is 18 cm wide and the height adjusts from 20 to 70 mm.
A built-in 5,200 mAh battery gives 100 minutes of working time and recharges in 180 minutes. The mower is rated IPX5, measures 54.2 × 37.3 × 24.1 cm and weighs 12.5 kg; packed, it is 14.5 kg in a 64 × 44 × 30 cm carton. Schedules and settings are managed in the smartphone app.
Coverage and working time are manufacturer ratings, not guarantees for every lawn. How the RTK reference is provided, how the mowing area is set up and the battery voltage are confirmed for the exact configuration in the quotation.
Key Capabilities
- RTK + visual AI navigation: Satellite positioning and visual AI together locate the mower on the lawn.
- Planned S-shaped rows: Path planning lays out S-shaped rows across the entire area for even coverage.
- Rated for 1,200 m²: The N3 covers four times the 300 m² rating of the economy TYM L3.
- Floating cut on 22° slopes: The deck follows uneven ground, and the mower is rated for gradients up to 22° (40%).
- 100 minutes per charge: The built-in 5,200 mAh battery recharges in 180 minutes.
- IPX5 with app control: The body is rated IPX5, and mowing is scheduled and adjusted in the smartphone app.
This model is offered on a quotation basis. Configuration, accessories, integration scope and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | TOUA |
|---|---|
| Manufacturer | Nanjing TOUA Robot Technology Co., Ltd. |
| Model | TYM N3 |
| Product Type | Robotic lawn mower |
| Navigation System | RTK + visual AI |
| Mowing Mode | Path planning (S-shaped rows) |
| Mowing Coverage | 1,200 m² |
| Max Slope | 22° (40%) |
| Cutting Width | 18 cm |
| Cutting Height | 20–70 mm |
| Floating Cut | Yes |
| Battery | Built-in, 5,200 mAh |
| Battery Voltage | Confirm at quote |
| Charging Time | 180 min |
| Working Time | 100 min |
| Protection Rating | IPX5 |
| App Control | Yes |
| Product Dimensions | 54.2 × 37.3 × 24.1 cm |
| Net Weight | 12.5 kg |
| Gross Weight | 14.5 kg |
| Carton Size | 64 × 44 × 30 cm |
| RTK Reference Station | Confirm at quote |
| Mowing Area Setup | Confirm at quote |
Industries
Frequently Asked Questions
It combines RTK satellite positioning with visual AI to locate itself, then mows the lawn in planned S-shaped rows that cover the whole area.
The L3 is TOUA's economy model: a boundary wire sets its limits, contact sensing turns it away from obstacles and it is rated for 300 m². The N3 navigates with RTK and visual AI, follows a planned route and is rated for 1,200 m², with a built-in 5,200 mAh battery and 100 minutes of working time.
Up to 22° (40%). The floating deck follows uneven ground, but wet grass and loose soil reduce grip on any slope, so describe steep sections when you ask for a quotation.
100 minutes of working time from the built-in 5,200 mAh battery, then 180 minutes to recharge. Coverage and run time are manufacturer ratings and vary with the lawn.
The mower measures 54.2 × 37.3 × 24.1 cm and weighs 12.5 kg. Packed, it weighs 14.5 kg in a 64 × 44 × 30 cm carton.
It is offered by quotation — configuration, quantity and delivery are confirmed per project.
