- Standard welding process package A professional package supports spot, corner, oscillation, reciprocating, cladding, and multi-layer multi-pass welding out of the box.
- Graphical interaction and drag teaching Two core functions let operators set up and adjust welding tasks quickly without specialist programming.
- ±0.02 mm repeatability High precision ensures consistent, high-quality weld seam output across production runs.
- Precise vision integration Vision support enables a variety of welding functions for greater flexibility and accuracy.
- Plug-and-play communication interfaces A wide range of interfaces are compatible with mainstream welding-machine brands for straightforward integration.
- Optional external-axis expansion An external-axis plugin package extends the robot to additional welding applications and custom workstation designs.
Description

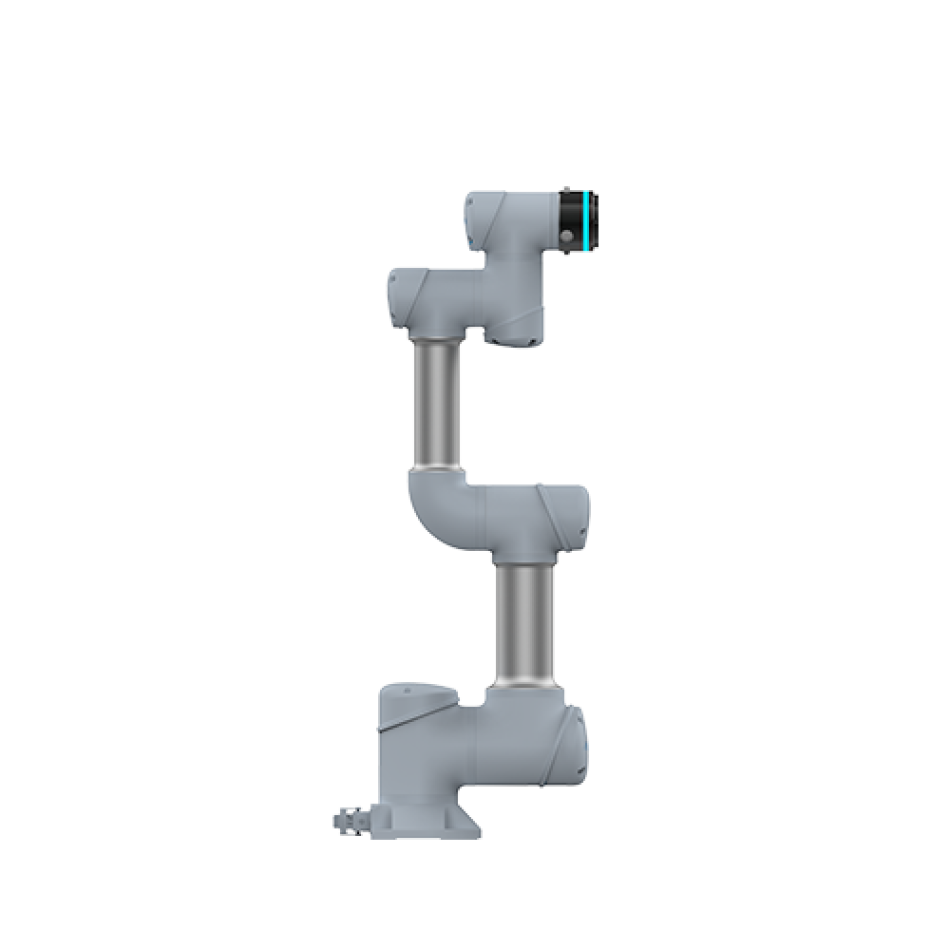

The SIASUN GCR3-618-W is a DUCO-series collaborative welding robot built around two core functions: graphical interaction and drag teaching. It ships with a professional welding process package as standard, allowing users to perform a wide range of welding tasks quickly, including spot welding, corner welding, oscillation welding, reciprocating welding, cladding, and multi-layer, multi-pass welding. With a 3 kg payload, 618 mm reach, six degrees of freedom, and repeatability of ±0.02 mm, the arm delivers the high precision needed for consistent, high-quality weld seams, while precise vision integration enables a variety of additional functions.
Designed to make welding automation accessible, the GCR3-618-W balances specialised welding capability with ease of use and offers comprehensive development interfaces for building bespoke welding workstations. A rich set of communication interfaces is compatible with mainstream welding-machine brands to enable plug-and-play functionality, and an optional external-axis plugin package expands the robot to support additional welding applications and customised workstation layouts. Its IP54/IP65 protection and maximum TCP speed of 1.0 m/s suit it to focused, repeatable welding operations on the factory floor.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | GCR3-618-W |
| Max Payload | 3kg |
| Reach | 618mm |
| Repeatability | ±0.02mm |
| Max TCP Speed | 1.0m/s |
| IP Class | IP54/IP65 |
| Degrees of Freedom | 6 |
Industries
Frequently Asked Questions
It is a DUCO-series collaborative welding robot with a 3 kg payload and 618 mm reach, built around graphical interaction and drag teaching, and supplied with a standard welding process package for fast deployment of welding tasks.
Its standard welding process package supports spot welding, corner welding, oscillation welding, reciprocating welding, cladding, and multi-layer, multi-pass welding, with further applications available through the optional external-axis plugin package.
The robot offers repeatability of ±0.02 mm across six degrees of freedom, with a maximum TCP speed of 1.0 m/s and an IP54/IP65 protection rating, ensuring high-quality, consistent weld seams.
Yes. It offers a rich set of communication interfaces compatible with mainstream welding-machine brands for plug-and-play functionality, along with comprehensive development interfaces for building custom welding workstations.
The GCR3-618-W is available on a request-for-quote basis through Robotix Market, with pricing and configuration confirmed to your requirements. It is covered by the manufacturer's warranty as provided by SIASUN.
