- 700 W high-power transmit Higher transmit power versus the PX2-05 supports more robust detection in adverse weather and extended-range scenarios.
- 10 km detection range Detects targets with radar cross-sections as small as 0.01 m² at distances up to 10 km.
- 360° electronic beam steering Full azimuth coverage with 0°–30° elevation via active phased array—no mechanical rotation required.
- 0.5–120 m/s speed range Tracks slow-moving drones and fast ground vehicles within the same scan cycle.
- IP66 weatherproof enclosure Dust and water sealed for continuous outdoor fixed-site deployment.
- Wide temperature tolerance Operates from -35°C to +55°C, covering arctic through tropical installation environments.
Description

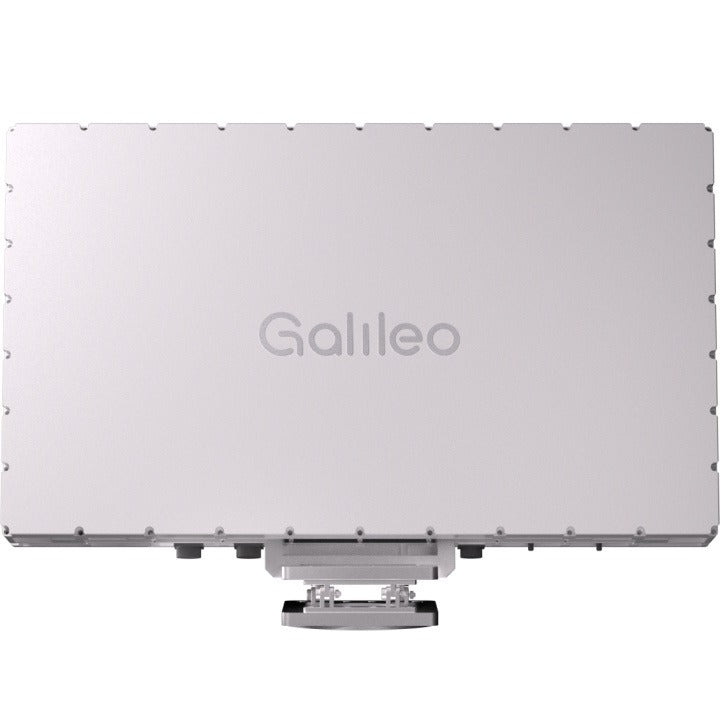

The Galileo PX2-10 is a high-power X-band 2D active phased array radar engineered for demanding security, government, and inspection deployments. Sharing the PX2 architecture's full 360° azimuth coverage and 0°–30° elevation sweep, it provides detection of radar cross-sections as small as 0.01 m² at ranges up to 10 km—effective against UAVs, ground vehicles, and low-profile personnel. The 0.5–120 m/s speed discrimination window supports simultaneous tracking of slow drones and fast-moving threats in cluttered environments.
Where the PX2-10 differentiates itself is in power: rated at 700 W from a 220 V/50 Hz supply, it is positioned for installations where greater transmit power supports more robust performance under adverse atmospheric conditions or extended detection scenarios. The system is sealed to IP66 and rated for -35°C to +55°C operation, making it suitable for permanent outdoor fixed-site installations in arctic, desert, and maritime environments. As with all GalileoTime PX2-series radars, no mechanical scanning is required—electronically steered beam management delivers low-latency target tracking and fast revisit times.
Features
Specs
| Brand | Galileo (GalileoTime) |
|---|---|
| Model | PX2-10 |
| Operating Frequency Band | X-band |
| Array Technology | 2D Active Phased Array |
| Detection Distance | 10 km (RCS = 0.01 m²) |
| Speed Range | 0.5–120 m/s |
| Azimuth Range | 360° |
| Elevation Range | 0°–30° |
| Power Supply | 220 V / 50 Hz |
| Power Consumption | 700 W |
| Operating Temperature | -35°C to +55°C |
| Ingress Protection | IP66 |
Industries
Frequently Asked Questions
The PX2-10 is an X-band phased array radar used for fixed-site perimeter security, government surveillance, border monitoring, and industrial inspection where long-range, all-weather detection of small targets is required.
The PX2-10 operates at 700 W compared to the PX2-05's ≤400 W, providing greater transmit power for more robust detection under adverse atmospheric conditions or in scenarios where extended effective range is a priority.
It is suited to government and security agencies, industrial facility operators, and emergency response organisations requiring continuous, all-weather radar surveillance of wide-area perimeters.
Yes, Robotix Market ships the Galileo PX2-10 worldwide. The product carries the manufacturer's warranty as provided by GalileoTime.
Submit a quote request through Robotix Market's website. Our team will confirm availability, configuration requirements, and logistics before completing your order.
