- NVIDIA Jetson Orin NX 8GB, 117 TOPS The Education edition computes on a Jetson Orin NX 8GB with a 6-core Cortex-A78AE CPU at 2 GHz, 8 GB of memory and 512 GB of storage.
- About 1 h 10 min of walking The 5 Ah battery gives about 1 hour 10 minutes of walking at 1.1 m/s, three and a half times the Geek Edition's 20 minutes.
- Charged in the robot The battery charges inside the robot in up to 2 hours, and the robot can charge while in use.
- Camera at 30 or 60 fps The stereo depth camera in the head runs at 30 fps by default and can be switched to 60 fps.
- From Agents to code Lessons can start with the six built-in Agents and the Booster App, then program the same robot in Python or C++ with ROS 2 Humble on board.
- Ready for the pitch The Soccer Agent tracks, chases and kicks the ball on its own, and Booster's open-source RoboCup demo covers a full 5 vs 5 match workflow.
- Wheeled hard case The robot and its battery ship in a wheeled hard transport case with the charger, the remote controller, a folding stool and a package list.
Description

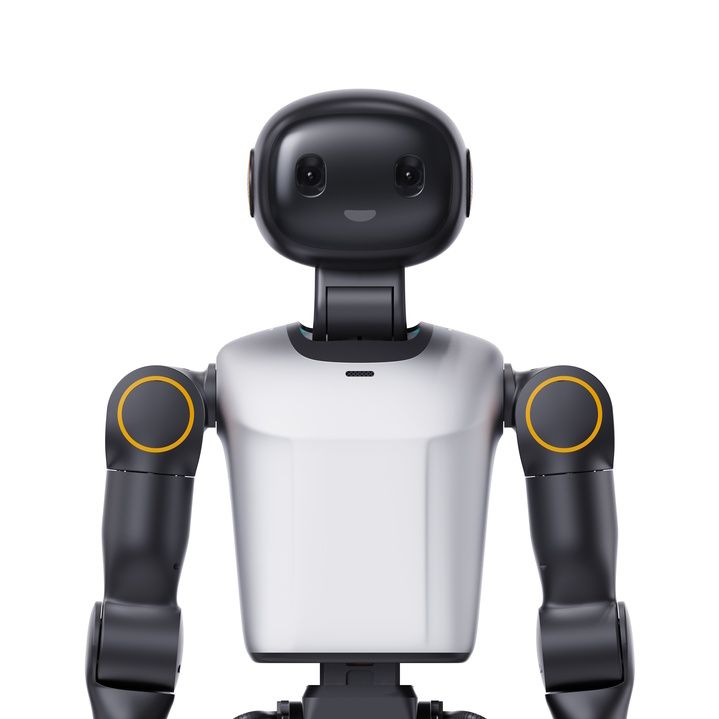

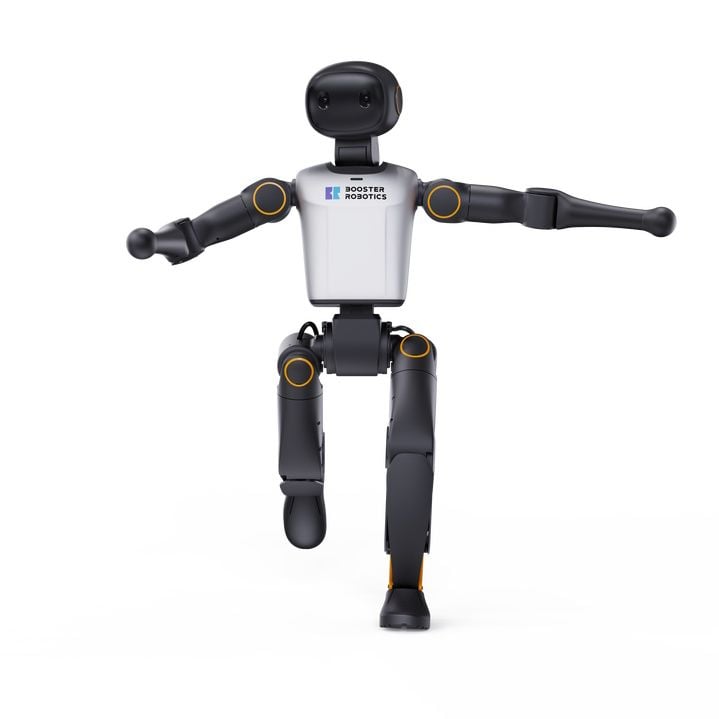

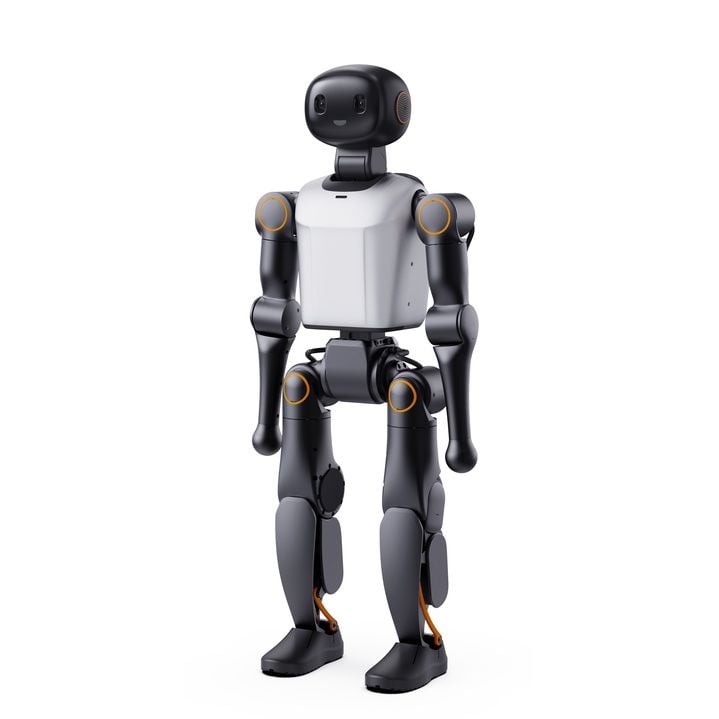

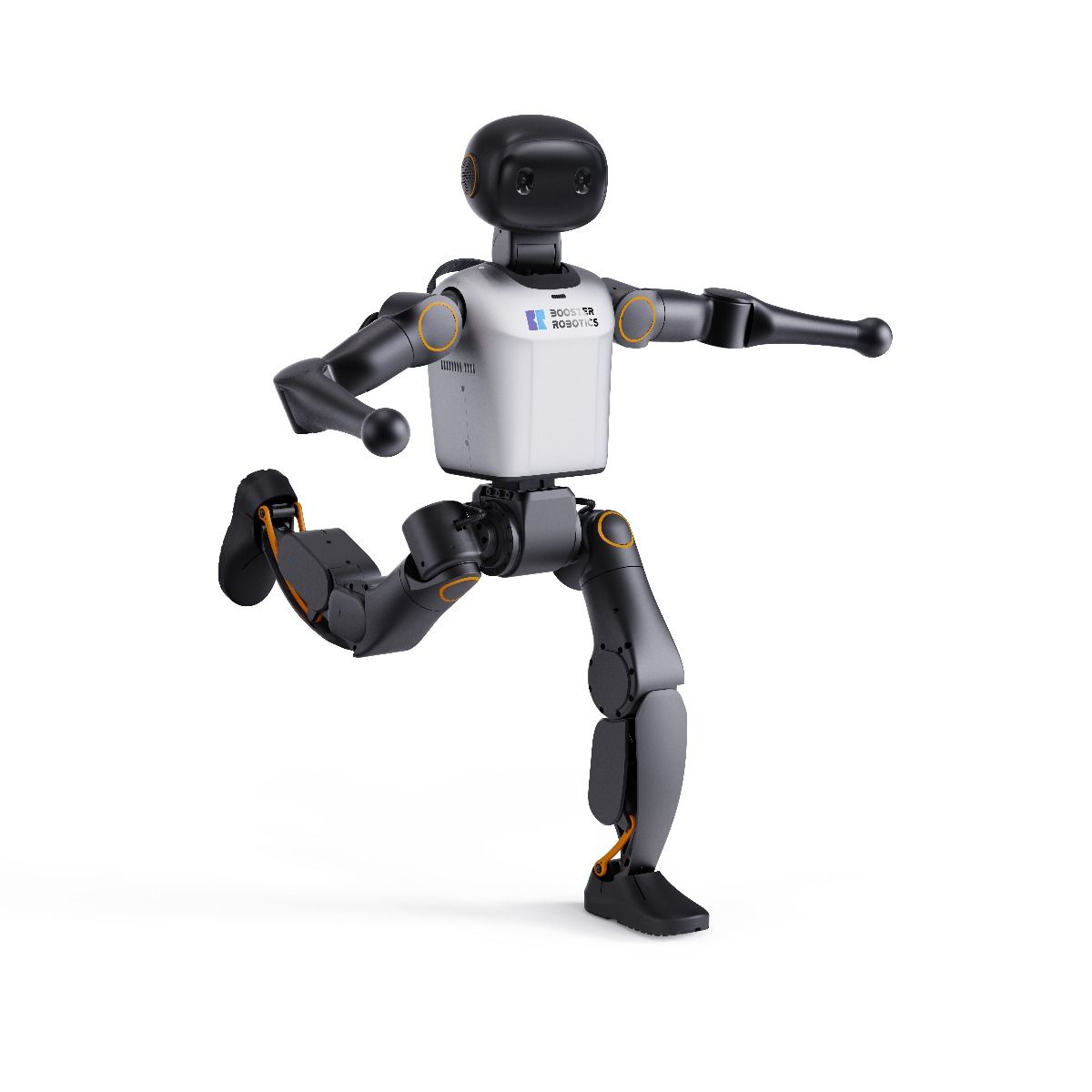

The Booster K1 Education is the K1 edition built around an NVIDIA Jetson Orin NX 8GB: 117 TOPS of on-board AI computing on a 6-core Cortex-A78AE CPU at 2 GHz, with 8 GB of memory and 512 GB of storage, in Booster's compact humanoid of about 95 cm and 19.5 kg with 22 degrees of freedom.
Its 5 Ah battery charges inside the robot in up to 2 hours, can charge while in use and gives about 1 hour 10 minutes of walking at 1.1 m/s, against about 20 minutes on the Geek Edition. The stereo depth camera runs at 30 fps by default and can be switched to 60 fps. The robot walks in every direction at up to 2 m/s, turns at up to 1.5 rad/s, recovers its balance after a push and gets back up after a fall; its arms end without hands or grippers.
For classrooms, robotics clubs and competition teams, the K1 Education starts with six built-in Agents (Booster, Soccer, Hi Chat, Teach, Dance and Lion Dance) and the Booster App, and the same robot is then programmed in Python or C++ as the course goes deeper, with ROS 2 Humble on board, URDF and MJCF models, Isaac Lab, MuJoCo and Webots for simulation and Booster's open-source RoboCup demo for 5 vs 5 soccer. It ships in a wheeled hard transport case with its battery, the charger, the remote controller, a folding stool and a package list.
The K1 Geek Edition is the entry edition, with a 48 TOPS (dense) ARM processor and a 2 Ah battery. The K1 Professional keeps the Education's battery and case and steps up to a Jetson AGX Orin 32GB with 200 TOPS and 32 GB of memory.
Key Capabilities
- Computing: NVIDIA Jetson Orin NX 8GB, 117 TOPS, 6-core Cortex-A78AE at 2 GHz, 8 GB memory, 512 GB storage.
- Battery: 5 Ah, charged in the robot and able to charge while in use: about 1 h 10 min of walking at 1.1 m/s.
- Camera: Stereo depth camera at 30 fps by default, 60 fps selectable.
- Teaching path: Six built-in Agents and the Booster App first, then Python, C++ and ROS 2 on the same robot.
- Competition: Soccer Agent and Booster's open-source RoboCup demo for 5 vs 5 humanoid soccer.
- Body: About 95 cm and 19.5 kg, 22 degrees of freedom, up to 2 m/s walking; wheeled hard transport case.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | Booster Robotics |
|---|---|
| Model | Booster K1 Education |
| Robot type | Compact bipedal humanoid robot |
| AI computing power | 117 TOPS |
| Computer | NVIDIA Jetson Orin NX 8GB |
| CPU | 6-core Cortex-A78AE at 2 GHz |
| Memory and storage | 8 GB memory, 512 GB storage |
| Camera frame rate | 30 fps by default, 60 fps selectable |
| Battery | 5 Ah, charged in the robot; can charge while in use |
| Walking time | About 1 h 10 min (walking at 1.1 m/s) |
| Charging time and cycle life | ≤ 2 h; ≥ 500 cycles |
| Body | About 95 cm standing, about 19.5 kg, built-in carrying handle |
| Degrees of freedom | 22: head 2, each arm 4, each leg 6; no hands or grippers |
| Joints | Max peak torque 60 N·m; dual encoders |
| Motion | Walking up to 2 m/s, turning up to 1.5 rad/s; omnidirectional walking, balance recovery, gets up after a fall |
| Modes | DAMP, PREP (stand), WALK, CUSTOM (every joint under your own code) and PROTECT (automatic on a fall) |
| Sensors and audio | Stereo depth camera and microphone array in the head; 9-axis IMU; 1 speaker |
| Buttons and indicator | Power button + WALK, STAND and F1; 1 RGB LED |
| Connectivity and ports | Wi-Fi 6; Bluetooth 5.2; Gigabit Ethernet; power-supply port |
| Control | Booster handheld controller (an Xbox controller works too); Booster App for iOS and Android; voice |
| Built-in software | 6 Agents: Booster, Soccer, Hi Chat, Teach, Dance, Lion Dance; large-model support; firmware updates |
| Voice | Real-time conversation in Chinese or English and voice commands to walk, turn, wave or shake hands, with an internet connection |
| Secondary development | Python SDK (boosteros) and C++ SDK; ROS 2 Humble on the robot; Ubuntu 22.04 |
| Simulation | URDF and MJCF models; Isaac Lab and Isaac Sim, MuJoCo, Webots; Booster Studio |
| Open-source demo | Booster's RoboCup framework for 5 vs 5 humanoid soccer on the K1: vision, decision making, motion control and GameController communication |
| Safety | Soft and hard emergency stop; automatic protection on a fall; low-battery and joint-overheat voice alerts |
| Certification and noise | CE / FCC; walking noise ≤ 70 dB |
| Environment | −10 °C to 45 °C; 5–90 % humidity, non-condensing |
| Operating area | Open, flat area of at least 2 m × 2 m; hard floors such as rubber, cement or tile for full-body dances |
| Warranty | Booster manufacturer warranty |
| In the box | The K1 robot and its battery, the charger, the remote controller, a folding stool and a package list, in a wheeled hard transport case with a security seal and a combination lock. Full packing list confirmed with your quotation |
Industries
Product Brochure
Booster Robotics K1 Education Humanoid Robot – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The Booster Robotics K1 Education Humanoid Robot is priced at £7,725 in your market. For volume or project orders, contact us for a business quote.
The K1 Education has an NVIDIA Jetson Orin NX 8GB with 117 TOPS and 512 GB of storage; the K1 Geek Edition a 48 TOPS (dense) ARM processor with 128 GB. Both have 8 GB of memory. The Education's 5 Ah battery charges in the robot and gives about 1 h 10 min of walking, against the Geek's 2 Ah battery with its own charger and about 20 minutes; its camera can be set to 60 fps; and it ships in a wheeled hard case rather than a retail box. Body, sensors, Agents and SDKs are the same.
They share the body, the 5 Ah battery, the 30 or 60 fps camera, the SDKs and the hard case. The K1 Professional steps up the computer: a Jetson AGX Orin 32GB with 200 TOPS, an 8-core Cortex-A78AE at 2.2 GHz and 32 GB of memory, against the Education's Jetson Orin NX 8GB with 117 TOPS, a 6-core CPU at 2 GHz and 8 GB.
Classes can start without code: the six built-in Agents run from the Booster App or the controller, the Teach Agent learns a motion when you guide the robot's limbs by hand and plays it back, and Hi Chat holds real-time conversations, with an internet connection, in personas made in Booster's HICHAT HUB console without code. As the course goes deeper, students program the same robot with the Python or C++ SDK and ROS 2 Humble, train in Isaac Lab and check policies in MuJoCo or Webots; the Soccer Agent and the RoboCup demo prepare teams for robot soccer.
The K1 robot and its battery, the charger, the remote controller, a folding stool and a package list, in a wheeled hard transport case with a security seal and a combination lock. The K1 Geek Edition ships in Booster's printed retail box instead. The full packing list of your edition is confirmed with your quotation.
About 1 hour 10 minutes of walking at 1.1 m/s on its 5 Ah battery. The battery charges inside the robot in up to 2 hours, the robot can charge while in use, and the battery lasts at least 500 charge cycles.
The K1 Education ships with Booster's manufacturer warranty. It is sourced new through established distribution channels and ships worldwide, and technical support is coordinated with the manufacturer's service network. Booster's online documentation centre holds the K1 product manual, the developer guide and the release notes, with video lessons from unboxing to packing.
