- 7 kg payload with 700 mm reach The longest working radius in the SA7A line-up, giving four-axis coverage for handling, sorting, assembly, and gluing over a larger envelope.
- Dual-support structure Provides larger load capacity, high rigidity, and low vibration for smooth, accurate motion even at higher operating speeds.
- Precision repeatability Rated at ±0.02 mm on J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 for dependable accuracy in precision manufacturing.
- Modular series design The SA7A platform's modular architecture serves more automation scenarios while keeping maintenance costs down.
- S series control cabinet and flexible programming Works with SIASUN's new-generation S series controller, supports multiple programming and teaching methods, and carries abundant user cables for expandability.
- Lightweight, space-saving deployment A compact body and lower overall height make installation convenient and reduce space constraints on crowded production lines.
Beschreibung

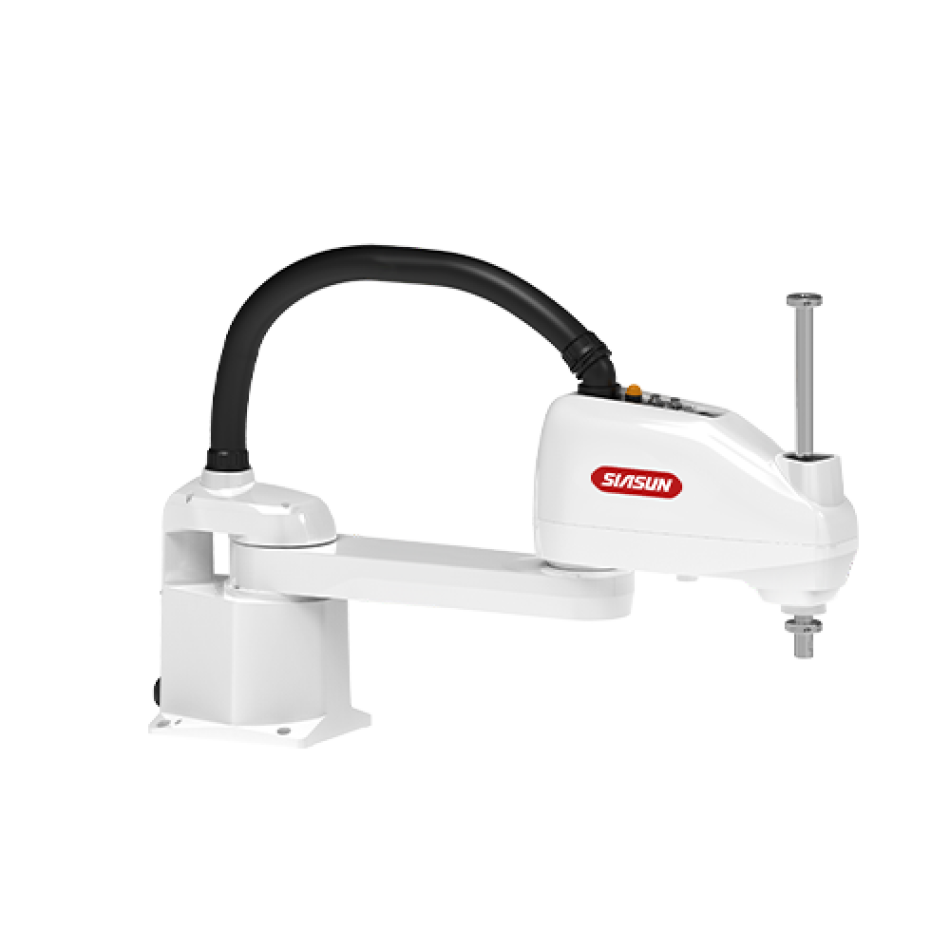

The SIASUN SA7A-7/0.70 is the extended-reach model of SIASUN's new-generation SA7A SCARA series, carrying a 7 kg payload across a 700 mm working radius on four axes. Its all-new proprietary core components and dual-support structure yield enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration, while repeatability of ±0.02 mm on joints J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 keeps every placement consistent. As with the rest of the series, a modular design allows the platform to cover more automation scenarios while reducing maintenance costs.
The SA7A-7/0.70 is intended for handling, sorting, assembly, and gluing work, with primary application industries in 3C electronics, lithium battery, photovoltaic, and automotive electronics production. It operates with SIASUN's new-generation S series control cabinet, offers multiple programming and teaching methods, and includes abundant user cables to support expansion at the tool end. A lightweight, compact structure and lower overall height keep deployment simple even where mounting space is limited. The robot is rated IP20 and is supplied on a quotation basis, with configuration confirmed against your project requirements.
Funktionen
Technische Daten
| Brand | SIASUN |
|---|---|
| Model | SA7A-7/0.70 |
| Type | SCARA robot |
| Payload | 7 kg |
| Reach | 700 mm |
| Degrees of Freedom | 4 |
| Repeatability | J1+J2 ±0.02 mm, J3 ±0.01 mm, J4 ±0.01° |
| Protection Rating | IP20 |
| Controller | New-generation S series control cabinet |
Branchen
Häufig gestellte Fragen
It is a four-axis SCARA robot from SIASUN's new-generation SA7A series with a 7 kg payload and 700 mm reach. Built on all-new proprietary core components and a dual-support structure, it delivers enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration.
It handles the core SCARA application areas of handling, sorting, assembly, and gluing. Its primary industries include 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing.
All SA7A variants share the same platform, 7 kg payload, four-axis layout, and repeatability ratings. The SA7A-7/0.70 offers the longest reach of the three at 700 mm, versus 500 mm on the SA7A-7/0.50 and 600 mm on the SA7A-7/0.60, making it the right choice when your workcell needs the largest working envelope.
The SA7A-7/0.70 pairs with SIASUN's new-generation S series control cabinet and supports multiple programming and teaching methods, with abundant user cables on the main unit for expandability.
It is available through Robotix Market on a request-for-quote basis: contact our team with your requirements and we will confirm pricing, configuration, and availability. The robot is covered by the manufacturer's warranty from SIASUN, and we ship worldwide.
