- Dedicated pallet-handling controller Designed specifically for single-steering wheel pallet AMRs with multi-core real-time control and hardware isolation for safety and stability.
- Triple LiDAR + dual-camera obstacle avoidance Integrated sensor inputs for robust obstacle detection and recognition in dynamic warehouse and factory environments.
- Dual CAN redundancy and 5x RS485 ports Rich bus interfaces enable seamless integration with drives and peripheral devices including light strips, batteries, and speakers.
- 4 navigation modes, ±5 mm accuracy Supports SLAM, QR code, reflector, and NFL navigation, delivering ±5 mm / ±1° positioning accuracy from any approach direction.
- Codesys / IEC 61131-3 compatibility PLC engineers can rapidly develop and adapt motion logic using the Codesys environment without specialist robotics tooling.
- CE, ETL, and UL certified Holds CE-EMC, CE-LVD, ETL, and UL/CSA 61010-1 certifications for worry-free global deployment.
Beschreibung
The SEER Robotics SRC-F10 is a dedicated controller purpose-built for pallet-handling autonomous mobile robots, combining a multi-core real-time architecture with hardware isolation to deliver industrial-grade safety and stability. It supports the single-steering wheel motion model and integrates triple LiDAR and dual-camera inputs for reliable obstacle avoidance and object recognition in busy warehouse and factory environments. Dual CAN redundancy and five RS485 ports enable seamless peripheral integration, while Codesys compatibility with IEC 61131-3 standards allows PLC engineers to rapidly adapt the platform and expand functionality with CANopen drives or Modbus RTU peripherals such as light strips, batteries, and speakers.
Four navigation modes—SLAM, QR code, reflector, and NFL—give deployment teams the flexibility to match the controller to the facility's infrastructure, and the advanced path-planning algorithm supports autonomous rerouting around obstacles and congestion for uninterrupted operation. Positioning accuracy is rated at ±5 mm and ±1°, meeting high-precision docking requirements from multiple approach angles. The SRC-F10 carries CE-EMC, CE-LVD, ETL, and UL certifications, ensuring compliance with international safety regulations across global deployments.
Funktionen
Technische Daten
| Brand | SEER Robotics |
|---|---|
| Model | SRC-F10 |
| Weight | 0.75 kg (1.65 lb) |
| Positioning Accuracy | ±5 mm, ±1° |
| Maximum Driving Speed | ≤2 m/s |
| Working Voltage | 24 V |
| CAN Interfaces | 2-way (dual redundancy) |
| RS485 Ports | 4-way |
| Ethernet | 2-way Gbps + 1-way 100 Mbps |
| Wi-Fi | Wi-Fi 6 dual-band 2.4G/5G 802.11ax 2T2R |
| USB | 2x USB 3.0 |
| Operating Temperature | -30°C to 55°C |
| Certifications | CE-EMC, CE-LVD, ETL, UL/CSA 61010-1 |
Branchen
Häufig gestellte Fragen
The SRC-F10 is a dedicated robot controller designed for pallet-handling autonomous mobile robots. It manages navigation, motion control, obstacle avoidance, and peripheral integration in warehouse, logistics, and factory automation environments.
The SRC-F10 supports four navigation modes (SLAM, QR code, reflector, NFL), delivers ±5 mm positioning accuracy, integrates triple LiDAR and dual-camera inputs, provides dual CAN redundancy and five RS485 ports, and is compatible with the Codesys / IEC 61131-3 development environment.
The SRC-F10 is suited to warehouse automation, logistics centers, manufacturing facilities, and industrial distribution operations that use pallet-handling AMRs for material transport.
Yes, Robotix Market ships the SEER Robotics SRC-F10 worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Contact Robotix Market through the website's quote or inquiry form to receive pricing, lead time, configuration details, and shipping information for the SRC-F10.

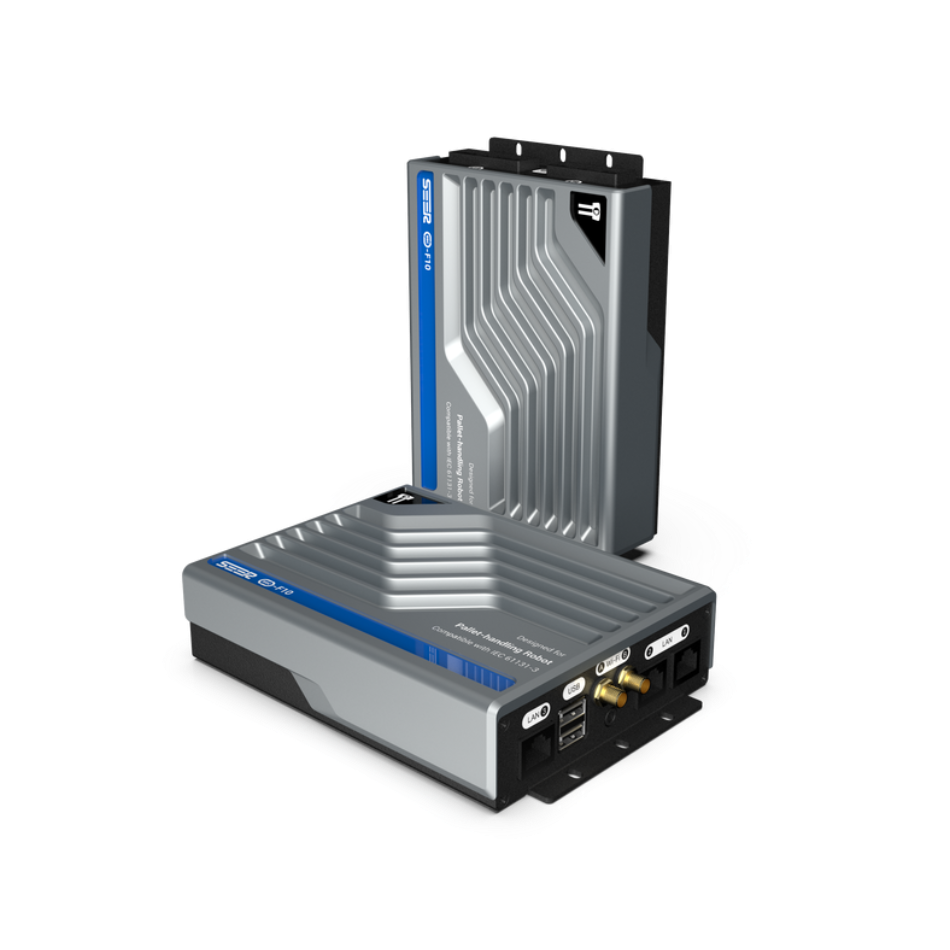

SEER Robotics SRC-F10 Pallet-Handling Robot Controller
