- 600 kg rated load Covers lighter-duty transfers up to 600 kg as the entry payload option in SIASUN's 600 to 3,000 kg under-ride lift series.
- Compact 280 mm-tall chassis Overall dimensions of just 950 x 650 x 280 mm let the robot travel beneath load carriers and operate in tight, space-efficient layouts.
- Under-ride lift engagement Drives under the load at the pick-up point and raises it through a steady 60 mm stroke for controlled, stable transfers.
- SLAM + QR-code navigation Navigates by SLAM fused with QR-code guidance or by QR codes alone, adapting to the routing scheme of the facility.
- ±10 mm / ±1° positioning accuracy Precise positioning ensures the robot engages carriers and completes drop-offs consistently on every cycle.
- 6–8 hours with fleet integration Runs for a rated 6 to 8 hours and coordinates with dispatch software and intelligent scheduling platforms for hands-off material flow.
الوصف

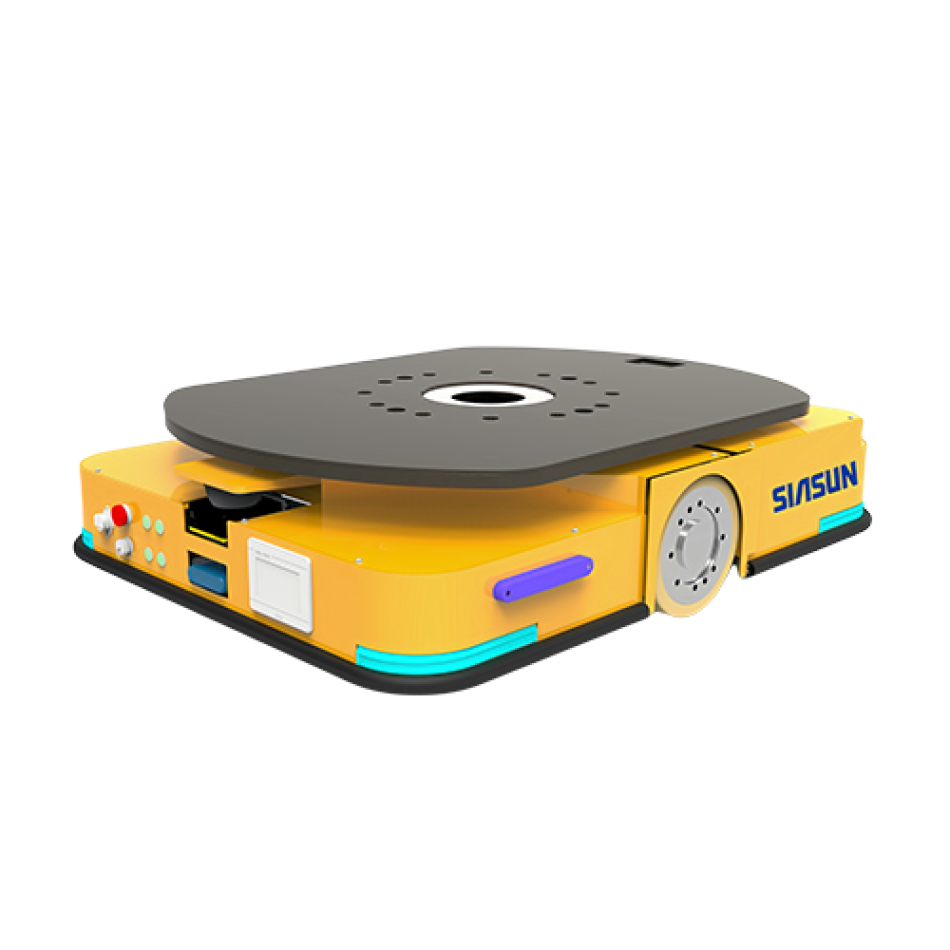

The SIASUN P-T600D is the entry payload point of SIASUN's under-ride lift mobile robot series, rated for loads up to 600 kg within a family that scales from 600 to 3,000 kg. Its compact 950 x 650 x 280 mm chassis is the key advantage: the robot travels under the load carrier, positions itself accurately at the pick-up point, and raises the load on a steady 60 mm lifting stroke. Guidance comes from SLAM combined with QR codes, or QR-code-only navigation, with positioning accuracy of plus or minus 10 mm and 1 degree and a rated operating time of 6 to 8 hours.
The P-T600D suits high-frequency, lighter-duty material transfers in production logistics and warehousing, where its small footprint lets it work in space-constrained layouts. Operating on autonomous navigation, safety sensing, and dispatch software, and integrating with intelligent scheduling platforms, it automates repeatable transport with minimal manual intervention. Typical environments include smart factories, warehouses, automotive production, lithium battery manufacturing, 3C electronics, pharmaceuticals, food, and photovoltaic production, wherever consistent positioning and safe autonomous transfer improve intralogistics flow.
الميزات
المواصفات
| Brand | SIASUN |
|---|---|
| Model | P-T600D |
| Rated Load | 600 kg |
| Lifting Height | 60 mm |
| Navigation Method | SLAM + QR Code / QR Code |
| Positioning Accuracy | ±10 mm / ±1° |
| Rated Operating Time | 6–8 hours |
| Overall Dimensions | 950 / 650 / 280 mm |
الصناعات
الأسئلة الشائعة
The P-T600D is an autonomous under-ride lift mobile robot from SIASUN. Its compact, low-profile body drives beneath a load carrier, lifts it 60 mm, and transports up to 600 kg autonomously using navigation, safety sensing, and dispatch software.
It offers a 600 kg rated load, a 60 mm lifting height, SLAM + QR Code or QR-code-only navigation, positioning accuracy of ±10 mm and ±1°, a rated operating time of 6 to 8 hours, and compact overall dimensions of 950 x 650 x 280 mm.
It automates lighter material transfers in production logistics and warehousing, with typical environments including smart factories, automotive production, lithium battery manufacturing, 3C electronics, pharmaceuticals, food, and photovoltaic production.
Choose the P-T600D when your load carriers stay within 600 kg and floor space is at a premium, since it is the entry payload option in a series that runs from 600 to 3,000 kg. For heavier duties, models such as the 2,000 kg P-T2000D and 3,000 kg P-T3000D are also available through Robotix Market.
The P-T600D is sold on a quotation basis, with availability, final configuration, and integration requirements confirmed before ordering. Request a quote through Robotix Market for pricing and shipping details; the robot is covered by the manufacturer's warranty as provided by SIASUN, and we ship worldwide.
